Pump 1O14U
| FP63 | At 5kg/ cm2 Air Pressure | Pressure Ratio |
|---|---|---|
| 06 | 420 (kg/ cm2) | 1:84 |
| 07 | 300 (kg/ cm2) | 1:60 |
| 08 | 250 (kg/ cm2) | 1:50 |
| 09 | 200 (kg/ cm2) | 1:40 |
| 10 | 150 (kg/ cm2) | 1:30 |
| 12 | 100 (kg/ cm2) | 1:20 |
| 14 | 80 (kg/ cm2) | 1:16 |
| 16 | 50 (kg/ cm2) | 1:10 |
| 20 | 40 (kg/ cm2) | 1:8 |
| 24 | 26 (kg/ cm2) | 1:5 |

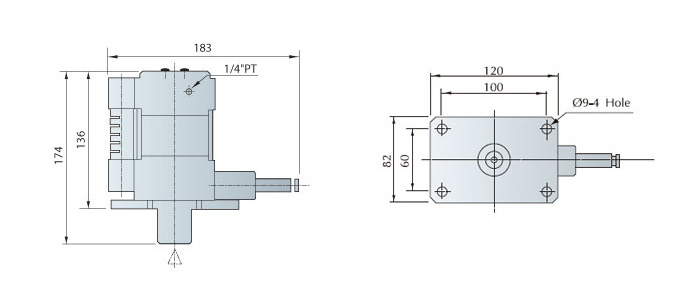

FP63 Pump
| Model | Total Circuits | A | B | Reservoir Capability | ||
|---|---|---|---|---|---|---|
| FP63口 口 U | 1 | 353 | 393 | 6 | ||
| FP63口 口 U | 2 | 353 | 393 | 6 | ||
| FP63口 口 U | 3 | 423 | 463 | 7.5 | ||
| FP63口 口 U | 4 | 493 | 533 | 9 | ||
| Model | Available Capability | Weight KG | Lubricant |
|---|---|---|---|
| FP63口 口 U | 4.7 | 23 | ISO VG32-VG68 |
| FP63口 口 U | 4.7 | 27 | |
| FP63口 口 U | 5.9 | 35 | |
| FP63口 口 U | 7.1 | 43 |
| Drive Fluid | Air |
| Air Pressure | 2~6 kg / cm2 (2~6bar) |
| Operating Temperature | - 5°~60° C |
| Lubricant | Standard hydraulic oil (ISO VG32-VG68) |
| Weight | 4kg |
（1）Air consumption MAX=0.35Nm3/ min.
（2）Please refer to instructions for large air flow.
（3）Specifications are subject to change, please contact us to confirm values.
FP100 Pump
| Model | Total Circuits | A | B | Reservoir Capability |
|---|---|---|---|---|
| FP10口 口 U | 1 | 353 | 393 | 6 |
| FP10口 口 U | 2 | 353 | 393 | 6 |
| FP10口 口 U | 3 | 423 | 463 | 7.5 |
| FP10口 口 U | 4 | 493 | 533 | 9 |
| Model | Available Capability | Weight KG | Lubricant |
|---|---|---|---|
| FP10口口U | 3.8 | 30 | ISO VG32-VG68 |
| FP10口口U | 3.8 | 34 | |
| FP10口口U | 4.8 | 42 | |
| FP10口口U | 5.8 | 50 |
| Drive Fluid | Air |
| Air Pressure | 2~6 kg / cm2 (2~6bar) |
| Operating Temperature | - 5°~60° C |
| Lubricant | ISO VG32-VG68 |
| Weight | 11kg |
（1）Air consumption MAX=0.8Nm3/ min.
（2）Please refer to instructions for large air flow.
（3）Specifications are subject to change, please contact us to confirm values.
