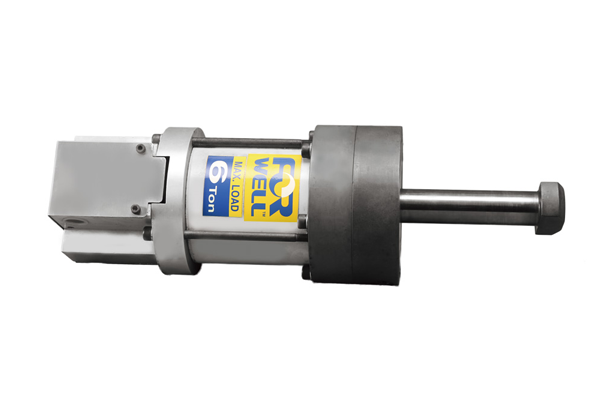

TR Rotating Clamps
The TR system uses a hydraulic mechanism with a 90° turning movement to lock molds and dies into position. This heavy duty Clamping System is available in three different models with a clamping force up to 16 tons.
Specifications
| Proof Pressure | 27.0MPa(275kgf/cm2) |
| Max Working Pressure | 18.1MPa(180kgf/cm2) |
| Working Pneumatic Range | 0.4~0.7(4~7kgf/cm2) |
| Ambient Temperature Range | -5~60°C |
| Hydraulic Fluid | ISO VG32~VG56 |

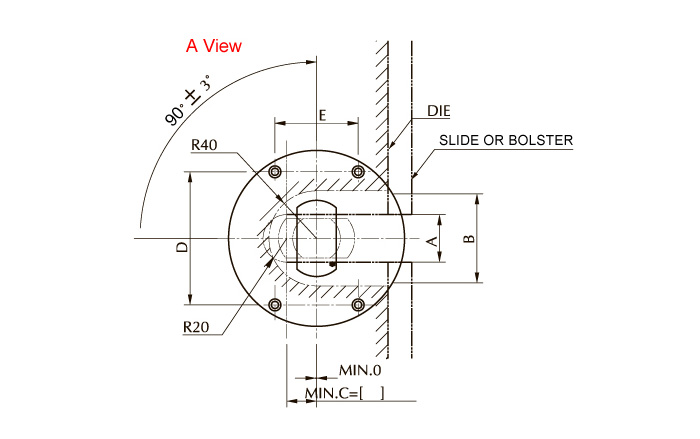

| Model | Clamping force(at 185kgf/cm2) | Requited Qrantity(cc.) | A±1 | MIN.B | MIN.C |
|---|---|---|---|---|---|
| TR-6 | 6 | 32.5 | 40 | 75 | 25 |
| TR-10 | 10 | 52.5 | 50 | 95 | 30 |
| TR-16 | 16 | 84.0 | 60 | 110 | 37 |

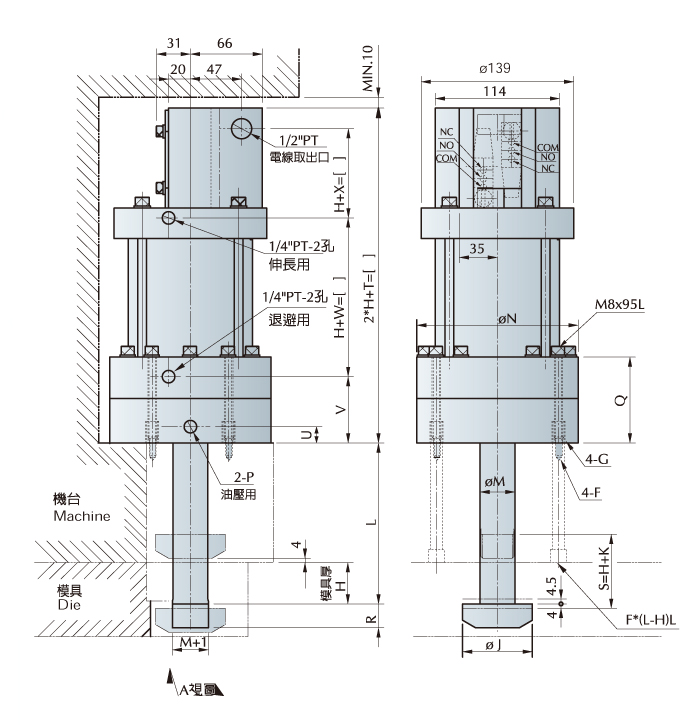

| Model | D | E | F | G | J | K | M | N | PT | Q | R |
|---|---|---|---|---|---|---|---|---|---|---|---|
| TR-6 | 112 | 70 | M8*16 Deep | M12*20 Deep | 64 | 30 | 32 | 148 | 1/4 | 79 | 22 |
| TR-10 | 116 | 70 | M10*25 Deep | M14*30 Deep | 84 | 35 | 40 | 158 | 3/8 | 89 | 27 |
| TR-16 | 120 | 76 | M10*25 Deep | M14*35 Deep | 99 | 40 | 50 | 168 | 3/8 | 94 | 32 |
| Model | T | U | V | W | X | kg Mass |
|---|---|---|---|---|---|---|
| TR-6 | 232 | 15 | 61 | 108 | 44 | 20 |
| TR-10 | 252 | 16 | 74 | 110 | 49 | 25 |
| TR-16 | 267 | 16 | 79 | 115 | 54 | 27 |
